Pneumatic feed unit for drilling, countersinking, tapping and screwing
The compact and lightweight design makes this feed unit to an ideal component of any system in special machine construction. In the lightest variant with only 2 kg it is a ideally suited for the use of robots. Robust drive technology and precise bronze/ steel sliding bearing of the spindle guarantee durability and manufacturing precision. Compact design in the modular system
- Compact construction (modular system)
- Engine power 0,30 kW
- Drill in soft steel up to 6 mm
- Thread-cutting in soft steel from M2 to M8
- as a engine stalling screw unit from 0,3 to 12,6 Nm
- Feed length 40 and 80 mm
- Slowing-down length 12.70, 25.40, 50.80 and 76,20mm
- Rotational speeds from 600 to 29.000 rpm
- End position sensing with magnetic field sensor (optional)

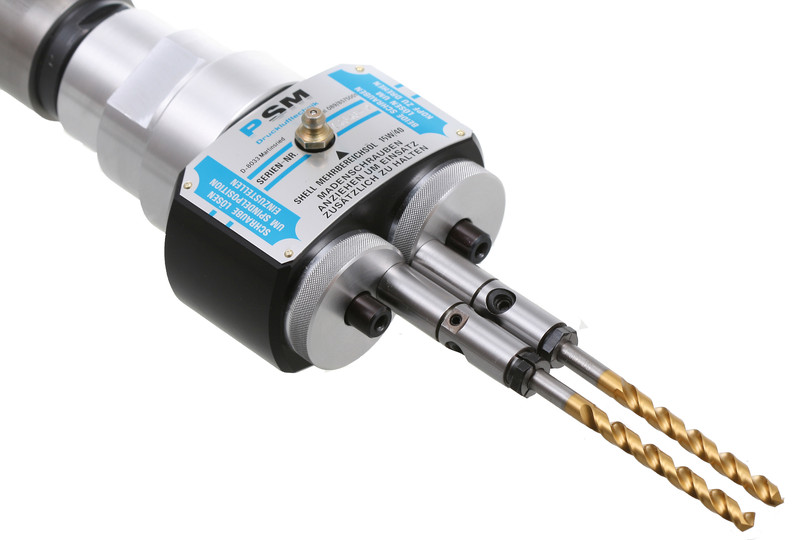

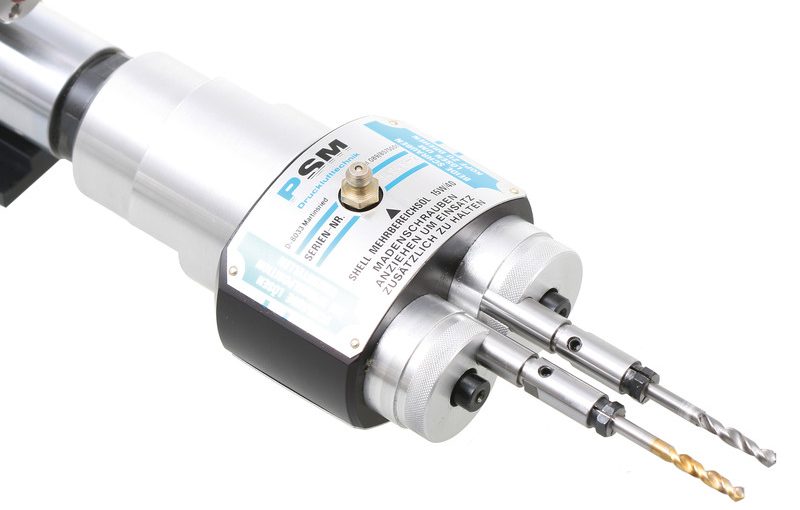

- Attachment of multi-spindle heads
- Attachment of die heads
- low weight (Robotics)
- Smallest dimensiones
- Spindle run-out accuracy 0,02 mm
- Drilling depth accuracy 0,01 mm
- Air consumption 5,4 l/sec.
- Working pressure 6,3 bar
