Hand-operated pneumatic drill feed units for the aircraft industry and special machine construction

Hand-operated pneumatic drilling feed unit for drilling and reaming with drilling templates

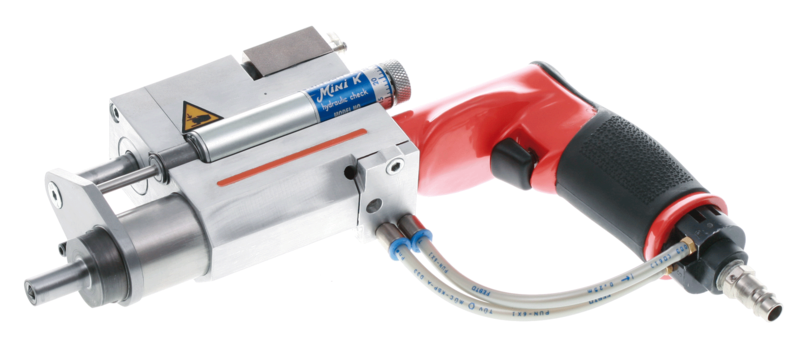

The BVE11 is a portable, compressed air-powered drill feed unit that can be locked to the mouthpiece. It is characterized by a pneumatic feed, which can be hydraulically braked 100% of the feed length. The pneumatic feed and the hydraulic brake allow infinitely variable adjustment of the feed force and feed speed. With the BVE11, materials such as titanium, aluminum, steel and composite materials, such as those used in aircraft construction, can be excellently drilled and reamed.

  • Motor power from 0.30 to 0.67 kW
  • Max. Drilling capacity in CFRP material up to 12 mm
  • Max. Drilling feed force 70 N
  • Speeds from 500 to 29,000 rpm

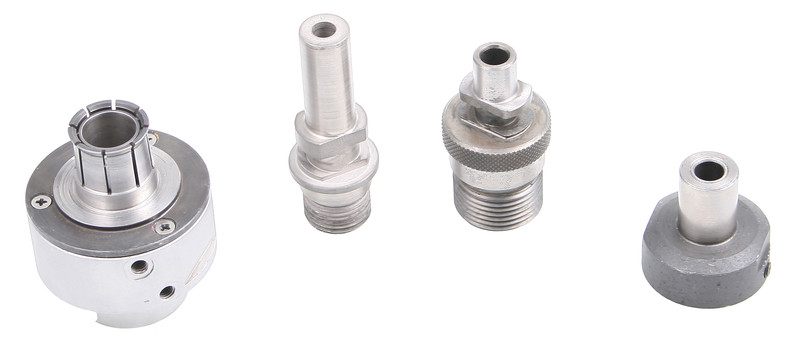

  • Drill clamping range from 1 ... 10 mm (collet)
  • 25.4 mm (1 inch) feed lengths
  • Braking lengths 100% of the feed length
  • Automatic execution of the drilling cycle
  • Low weight of 1.9 kg

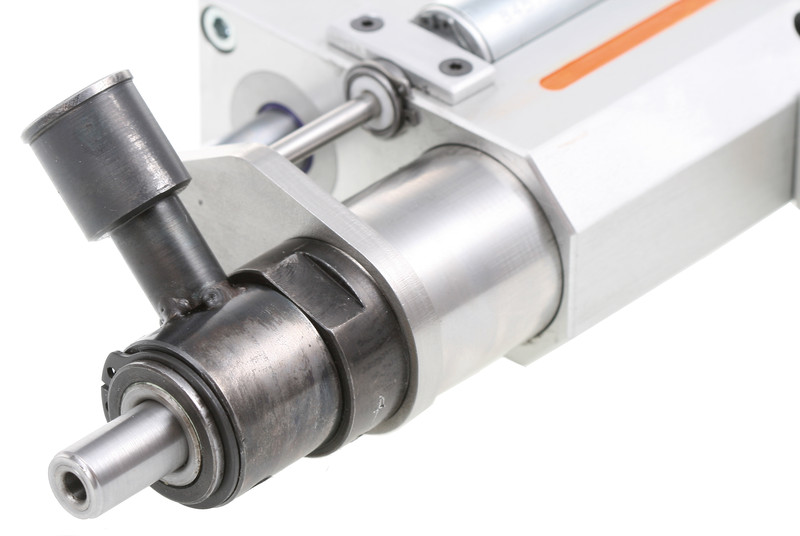

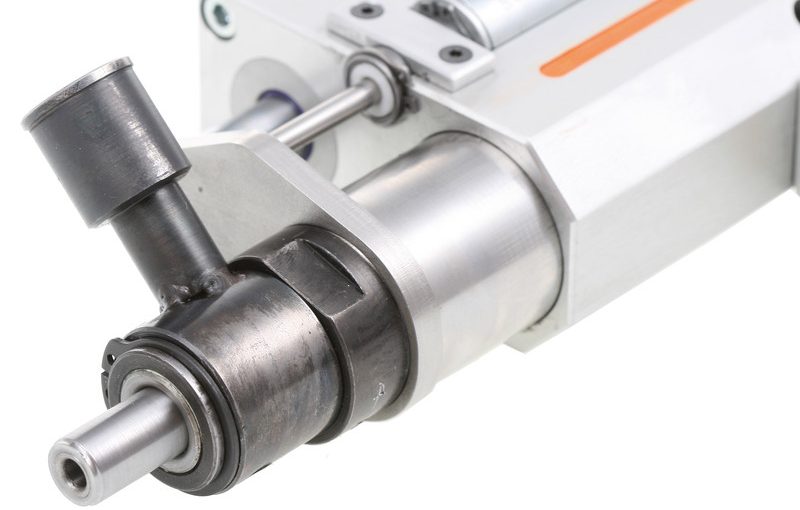

  • With drill guide sleeve for use on drilling templates
  • Optional: bayonet clamping
